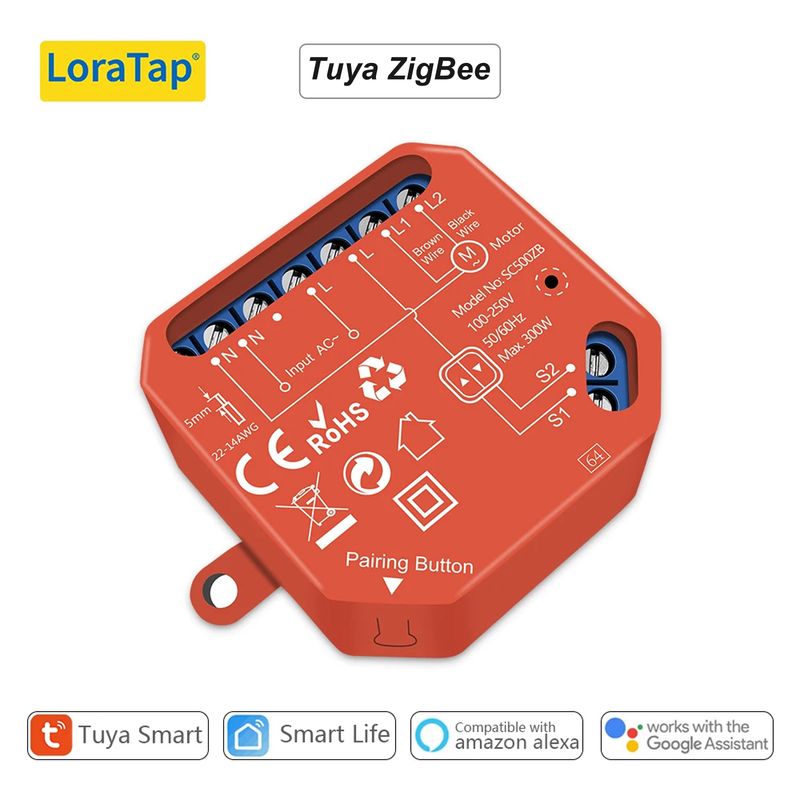

LoraTap ZigBee 3.0 Curtain Switch Module For Roller Bd Shutter Motor Tuya Smart Work with Alexa Google Home Zigbee2MQTT
181 sold
£55.94£75.99
Color : 1pc







Ships From : CHINA
CHINA
Quantity :
Report
Include copyright infringementFree Standard Shipping. See details
Estimated between Sun, Nov 9 and Thu, Nov 13
You can return the product within 30 days of receipt. See details
Shop with confidence
Money Back Guarantee
Get the item you ordered or your money back. Learn more
About this item
Seller assumes all responsibility for this listing.Item number: 28303573
Item specifics
Item description from the seller
Note before order
- The module can be compatible with any electric shutter motor with 4 wires,(Live Wire 1, Live Wire 2, Neutral Wire, Earth Wire), and 100-250 VAC voltage input, But the live wire 1, live wire 2 (for open and close )and neutral wire these 3 wires must be required for installation, otherwise it cant connect with our switch.
- This module cant work with any DC Motor.
ZigBee Hub is Required
- Tuya ZigBee 3.0 curtain switches need work with Tuya ZigBee Hub, please make sure you already have a Tuya ZigBee Hub, if not, you can click the k in the picture below to buy the zigbee hub.
- This ZigBee curtain switch cant work with other brands ZigBee Hub, please make sure your ZigBee Hub is from Tuya.
APP Name: Tuya App or Smart Life App
Support : Android and IOS
Tuya ZigBee Mesh Curtain Module
- You can add up to 256pcs Sub ZigBee devices in Tuya ZigBee Mesh Network.
- Please make sure you already have a Tuya ZigBee Hub, its a must for all the Tuya/Smart Life ZigBee devices.
Hands free- Voice Control
Voice Control with Google Home, Alexa

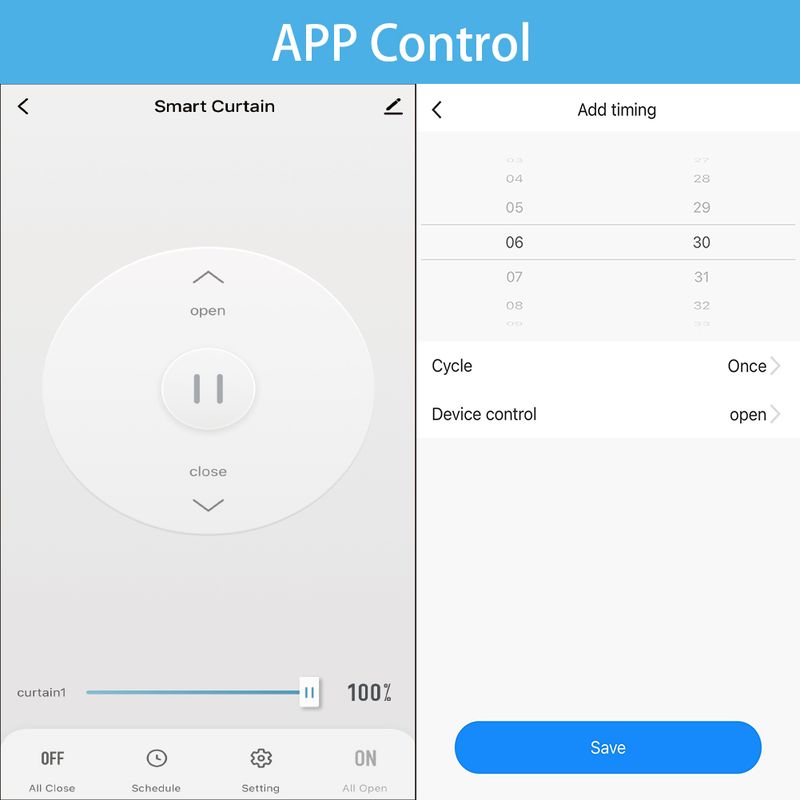

Set Timer Schedule for your curtain
Set timer on App for when to open, when to close your curtain, it will open or close automatically.
Remote control with your mobile anywhere even you are not at home
- Group Function and Device Sharing
You can create group in the APP to manage all the bds in your house and share the device to all your family members.
Compact Mini size
Tiny size design enable it can fit most junction box.
2 Wiring diagram according to your need, to connect with your manual switch or dont need a manual switch
- If you need to connect with your manual switch, please refer to below wiring diagram .
- If you need any help for how to connect the module, please be free to contact with seller.
- If you dont need to connect with your manual switch, please refer to below wiring diagram .
- If you need any help for how to connect the module, please be free to contact with seller.
Specification
Input voltage: 100-250VAC, 50/60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 300W
Wireless Protocol: Tuya ZigBee 3.0
Standby Consumption: below 0.5W
APP Name: Smart Life or Tuya
Voice Control: Google Assistant, Alexa
Plastic Material: FireprooBS
Certification: CE, EMC, RED, RoHS
Patented Product: Yes
Produced by ISO9001 Factory: Yes
We have all the accessories you need in the box, you dont need to pay extra cost.
Please be noted the Tuya ZigBee Hub is not included in the box if you dont buy it.

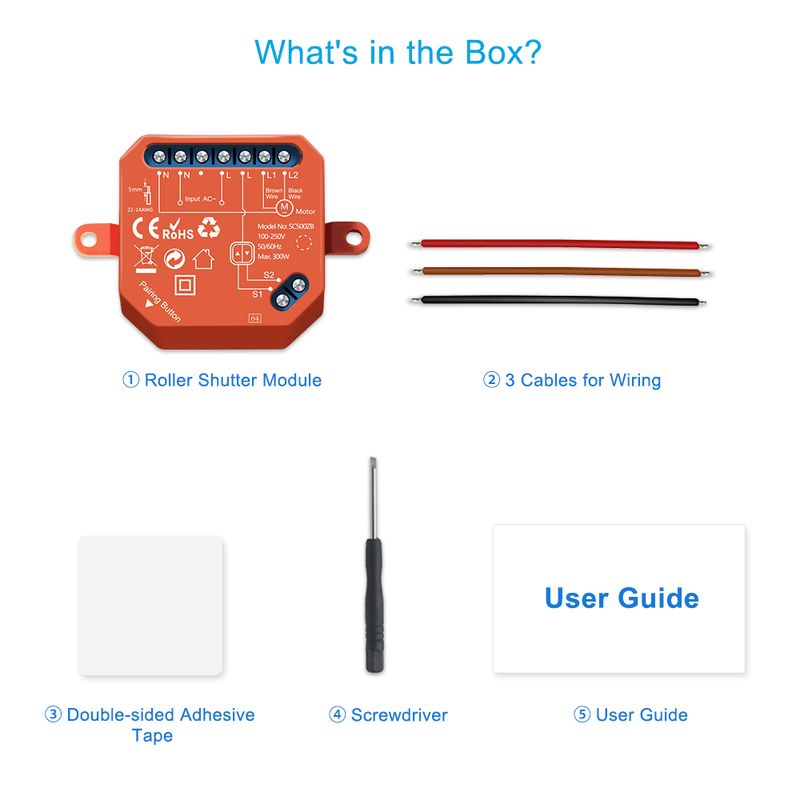

Whats in the box?
1 * ZigBee 3.0 Curtain Switch Module
1 * Screwdriver
3 * Cable for Wiring
1 * Double-Sided Tape
1 * English User Guide
